Services

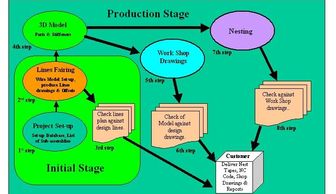

• We will define a 3D Cad/Cam model of your vessel using basic design information.
• During this process we will define all parts of the ship to a highly detailed level.
• Also during this process the model details are thoroughly checked by experienced designers & engineers.
• Once the model is complete we extract various drawings, sketches, lists and reports. This extracted information becomes the Detailed Design "package" used to construct the vessel.

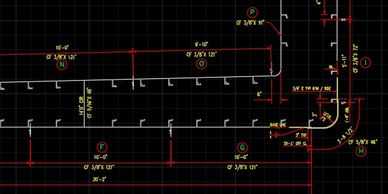

• By extracting views from the 3D model we produce design drawings that are  submitted to the owner, regulatory bodies and builder.
• All levels of drawings can be produced, from submittal/scantling drawings to foundations, ladders and so on.

• We can assist you by checking your model & design information.
• We don't just find errors we provide solutions.

• We will examine your design and make recommendations so that the data produced matches your builders capabilities This process is known as "Build Strategy".
• To match lifting capabilities, construction processes and schedule we divide the vessel into  zones, blocks, modules, assemblies and panels.

• By importing Laser Survey generated  3D Point Cloud Data or just a tape measure, we can help with damage repair, modifications or major refits.
• We can survey the vessel, make recommendations us )or you) to produce the Details Design information.

With 30+ years of Cad/Cam management, development and usage we can examine your processes and fine-tune your system to be more efficient thereby saving hundreds or even thousands of hours on your next project.
